Humidity Sensor HS1101

Mã SP: 160180

Humidity Sensor HS1101 Full interchangeability with no calibration required in standard conditions ● Instantaneous desaturation after long periods in saturation phase ● Compatible with automatized assembly processes, including wave soldering, reflow and water immersion (1) ● High reliability and long term stability ● Patented solid polymer structure ● Suitable for linear voltage or frequency output circuitry ● Fast...

48.000₫

Số lượng	Đơn giá
1-19	48000
20-99	42000
100+	37000

HỖ TRỢ PHÍ VẬN CHUYỂN

- Nội thành Hà Nội: Đơn hàng trên 500.000 đ (Tối đa 20,000đ)
- Toàn quốc: Đơn hàng trên 1.000.000đ (Tối đa 50,000đ))

Giao hàng tận nơi và
nhanh chóng bởi Viettel Post.
Thu tiền tại nhà, đảm bảo
an toàn.
Đổi trả hàng trong 3 ngày,
thủ tục đơn giản.

MÔ TẢ
BÌNH LUẬN

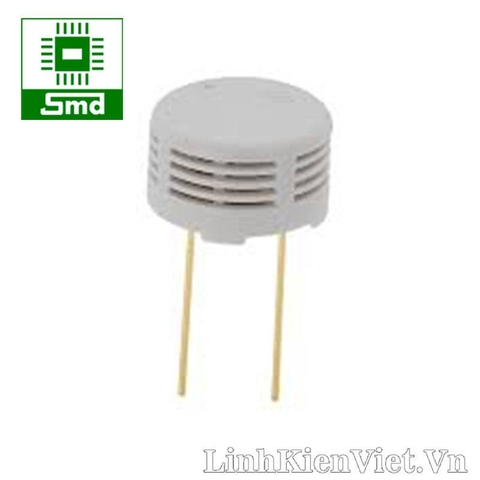

Humidity Sensor HS1101

Full interchangeability with no calibration required in standard conditions
● Instantaneous desaturation after long periods in saturation phase
● Compatible with automatized assembly processes, including wave soldering,
reflow and water immersion (1)
● High reliability and long term stability
● Patented solid polymer structure

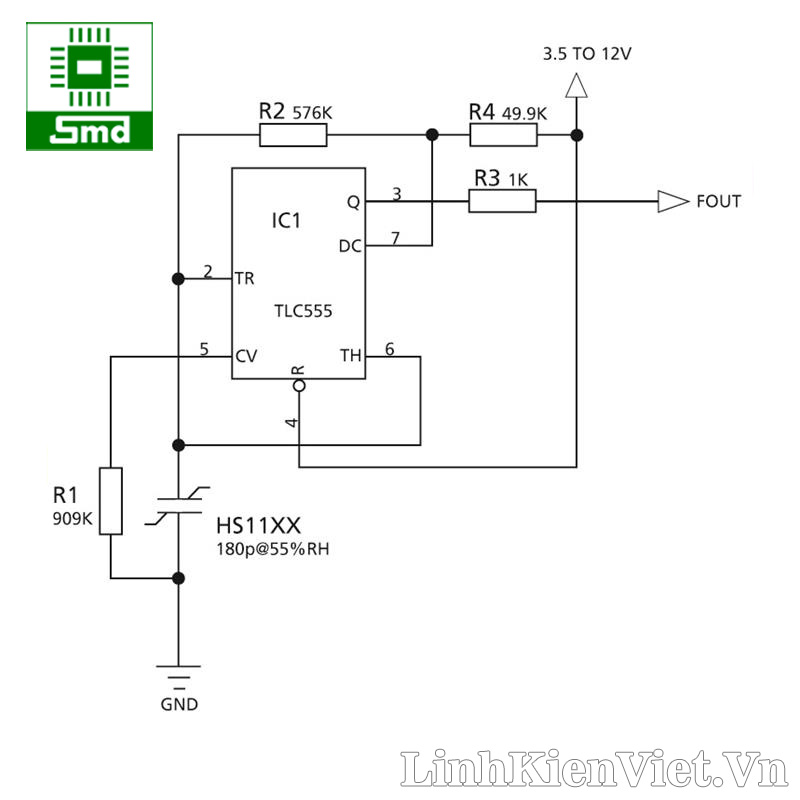

● Suitable for linear voltage or frequency output circuitry
● Fast response time
● Individual marking for compliance to stringent traceability requirements
MAXIMUM RATINGS (Ta= 25°C unless otherwise noted)

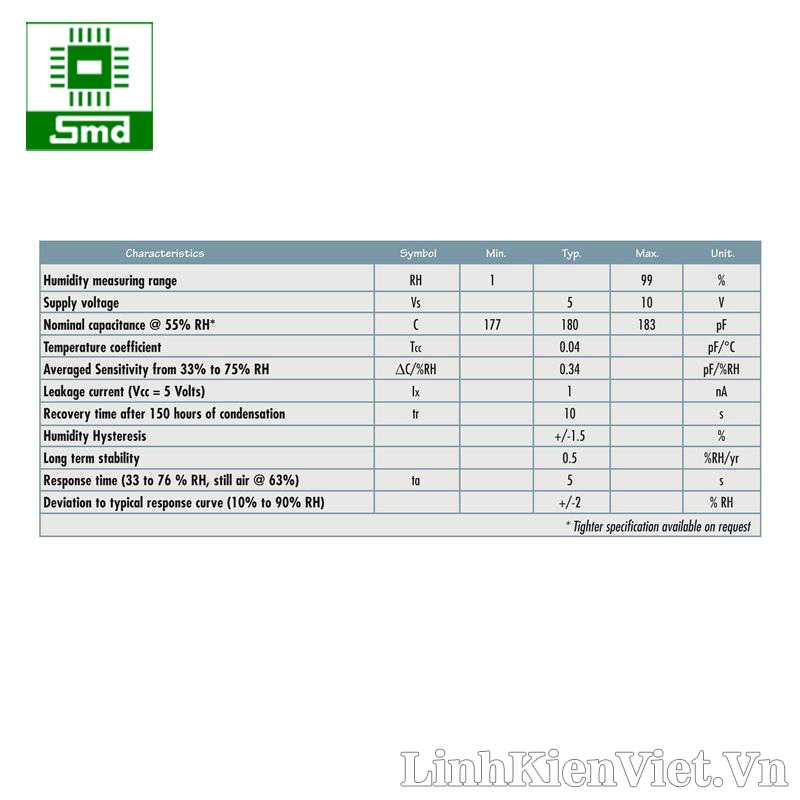

CHARACTERISTICS
Ratings Symbol Value Unit
Operating Temperature Ta -40 to 100 °C
Storage Temperature Tstg -40 to 125 °C
Supply Voltage Vs 10 Vac
Humidity Operating Range RH 0 to 100 % RH
Soldering @ T = 260°C t 10 s
