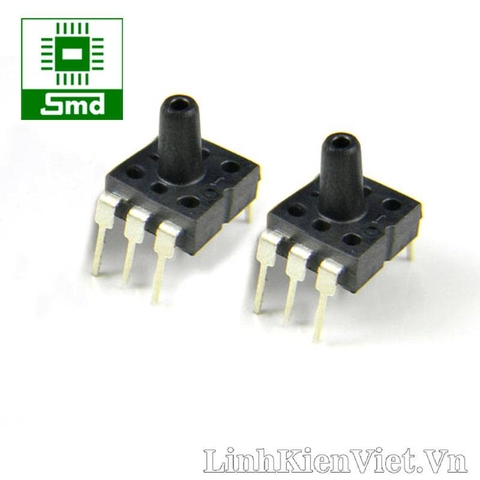

Cảm biến áp suất XGZP040DB1 40kPA
Thông số kỹ thuật:
Range: 40kpa (differential pressure)
Output: mV signal
Electricity supply: 5VDC or constant current 1Ma
Linear accuracy: 0.25% FS
Measure the pressure range of 580 PSIG, 40KPaG
Max pressure capacity of three times the measuring range
Work power supply 5 VDC,
Input impedance of 4 - 6 KΩ
The output impedance of 4 - 6 KΩ
Operating temperature -40 - 85 ° C -40 ° F - +185 ° F
Storage Temperature -40 - 125 ° C -40 ° the F - +257 ° F
Accessible media, clean, dry, non-corrosive gases
Bias voltage ± 25 mV
Full-scale output voltage 50 - 100 mV

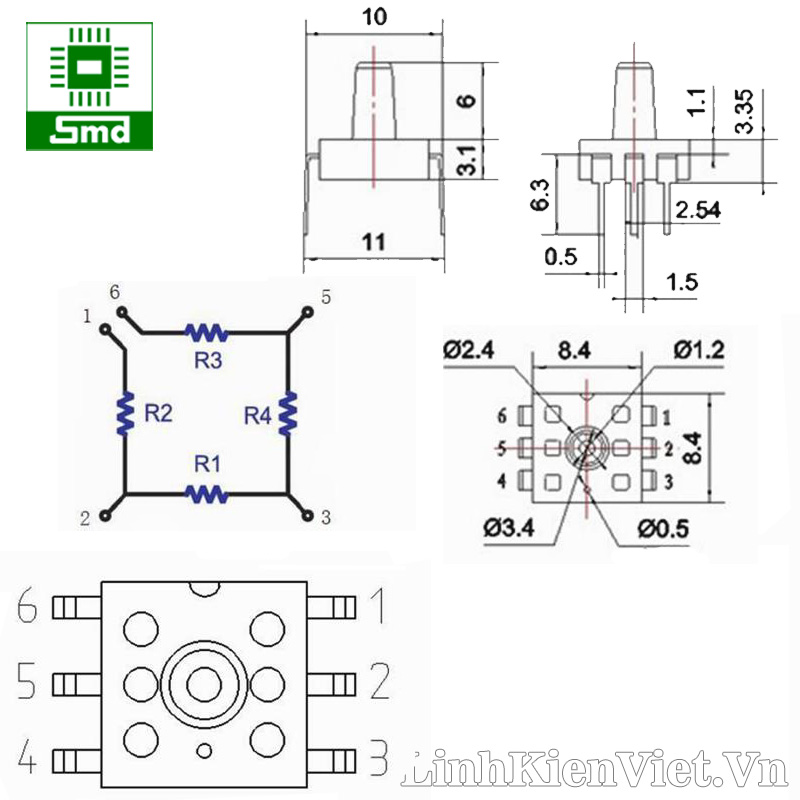

Bridge Resistance to 4 - 6 KΩ
Linearity ± 0.3% F.S.
Hysteresis ± 0.7% F.S.
Bias Temperature coefficient ± 0.08% of F.S. / °c
Temperature coefficient of sensitivity -0.21 % FS/ °c
