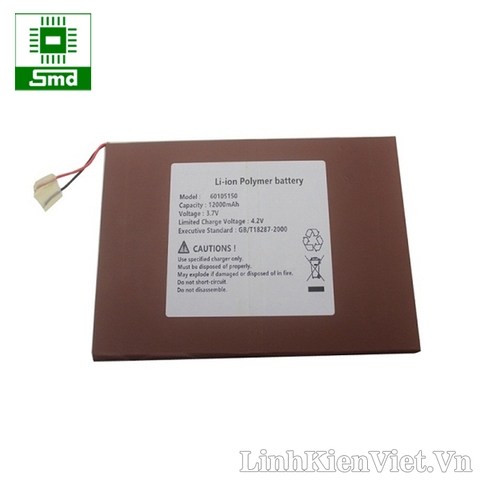

Pin lithium 60105150 12000mAh 3.7V

Mã SP: 430750

Pin lithium 60105150 12000mAh 3.7V No. Item General Parameter Remark first Rated Capacity Typical 12100mAh Standard discharge(0.2C C5A) after Standard charge Minimum 12000mAh 2 Nominal Voltage 3.7V Mean Operation Voltage 3 Voltage at end of 3.0V Discharge Cut-off Voltage Discharge 4 Charging Voltage 4.2±0.03V 5 Internal Impedance ≤30 m Ω Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times 6 Standard charge Constant Current...

580.000₫

Số lượng	Đơn giá
1-4	580,000
5-9	540,000
10+	500,000

HỖ TRỢ PHÍ VẬN CHUYỂN

- Nội thành Hà Nội: Đơn hàng trên 500.000 đ (Tối đa 20,000đ)
- Toàn quốc: Đơn hàng trên 1.000.000đ (Tối đa 50,000đ))

Giao hàng tận nơi và
nhanh chóng bởi Viettel Post.
Thu tiền tại nhà, đảm bảo
an toàn.
Đổi trả hàng trong 3 ngày,
thủ tục đơn giản.

MÔ TẢ
BÌNH LUẬN

Pin lithium 60105150 12000mAh 3.7V

No.	Item	General Parameter		Remark
first	Rated Capacity	Typical	12100mAh	Standard discharge(0.2C C₅A) after Standard charge
		Minimum	12000mAh
2	Nominal Voltage	3.7V		Mean Operation Voltage
3	Voltage at end of	3.0V		Discharge Cut-off Voltage
	Discharge
4	Charging Voltage	4.2±0.03V
5	Internal Impedance	≤30 m Ω		Internal resistance measured at AC 1KH_Zafter 50% charge
				The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times
6	Standard charge	Constant Current 0.2C₅A		Charge time : Approx 6h
		Constant Voltage 4.2V
		0.01 C₅A cut-off
7	Standard discharge	Constant current 0.2 C₅A
		end voltage 3.0V
8	Fast charge	Constant Current 0.5C₅A		Charge time : Approx 2.5h
		Constant Voltage 4.2V
		0.01 C₅A cut-off
9	Fast discharge	Constant current 0.5C₅A
		end voltage 3.0V
ten	Maximum Continuous Charge Current	1 C ₅ A
11	Maximum Continuous Discharge Current	1C₅A
twelfth	Operation Temperature Range	Charge: 0~45℃		60±25%R.H.
				Just Cell
		Discharge: -20~60℃
13	StorageTemperature Range	Less than 1 year: -20~25℃		60±25%R.H.
		less than 3 months: -20~40℃		at the shipment state
14	Pack Dimension	High:.max6.1mm Width: max105mm Thickness: max152mm		Initial Dimension

Pin lithium 60105150 12000mAh 3.7V

1. Cấp độ bảo hành: (xem thêm về cấp độ bảo hành của công ty tại đây)

2. Quy định riêng:

🔴 Công ty cổ phần điện tử SMD

📬 Địa chỉ: số 84 ngõ 132 đường Cầu Diễn – Minh Khai – Bắc Từ Liêm – HN.

☎️ Điện thoại cửa hàng: 0246 687 4969

☎️ Điện thoại bán hàng online: 0988 125 136

☎️ Điện thoại bán hàng thương mại: 0869 256 946

☎️ Điện thoại kỹ thuật: 02466537247

🔴 Zalo kỹ thuật: 0869256946

📧 Email: smdchip.vn@gmail.com

🌎 Website: http://linhkienviet.vn

🔴 Fanpage: https://www.facebook.com/smdchip.vn/

🔴 Group hỗ trợ: https://www.facebook.com/groups/linhkiendientusmd

Mô tả

Pin lithium 60105150 12000mAh 3.7V

No.	Item	General Parameter		Remark
first	Rated Capacity	Typical	12100mAh	Standard discharge(0.2C C₅A) after Standard charge
		Minimum	12000mAh
2	Nominal Voltage	3.7V		Mean Operation Voltage
3	Voltage at end of	3.0V		Discharge Cut-off Voltage
	Discharge
4	Charging Voltage	4.2±0.03V
5	Internal Impedance	≤30 m Ω		Internal resistance measured at AC 1KH_Zafter 50% charge
				The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times
6	Standard charge	Constant Current 0.2C₅A		Charge time : Approx 6h
		Constant Voltage 4.2V
		0.01 C₅A cut-off
7	Standard discharge	Constant current 0.2 C₅A
		end voltage 3.0V
8	Fast charge	Constant Current 0.5C₅A		Charge time : Approx 2.5h
		Constant Voltage 4.2V
		0.01 C₅A cut-off
9	Fast discharge	Constant current 0.5C₅A
		end voltage 3.0V
ten	Maximum Continuous Charge Current	1 C ₅ A
11	Maximum Continuous Discharge Current	1C₅A
twelfth	Operation Temperature Range	Charge: 0~45℃		60±25%R.H.
				Just Cell
		Discharge: -20~60℃
13	StorageTemperature Range	Less than 1 year: -20~25℃		60±25%R.H.
		less than 3 months: -20~40℃		at the shipment state
14	Pack Dimension	High:.max6.1mm Width: max105mm Thickness: max152mm		Initial Dimension
