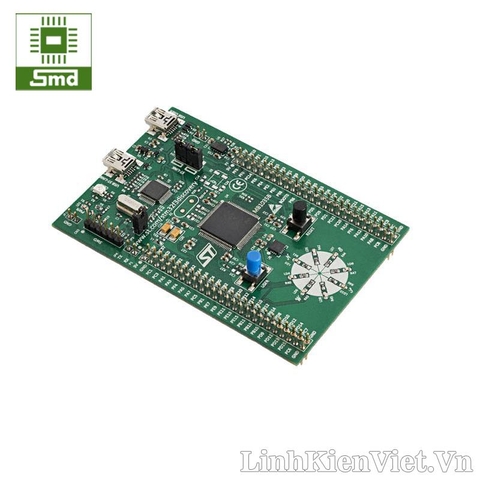

STM32F3 discovery STM32F303VCT6
- The STM32F3DISCOVERY allows users to easily develop applications with the STM32F3 Series based on ARM® Cortex®-M4mixed-signal MCU. It includes everything required for beginners and experienced users to get started quickly.
- Based on the STM32F303VCT6, it includes an ST-LINK/V2 or ST-LINK/V2-B embedded debug tool, accelerometer, gyroscope and e-compass ST MEMS, USB connection, LEDs and push-buttons.
- The STM32F3DISCOVERY discovery board does not support the STM32F313xx MCUs (1.65 V to 1.95 V power supply).
-
Key Features
- STM32F303VCT6 microcontroller featuring 256-Kbyte Flash memory, 48-Kbyte RAM in an LQFP100 package
- On-board ST-LINK/V2 for PCB version A or B or ST-LINK/V2-B for PCB version C and newer
- USB ST-LINK functions:
- Debug port
- Virtual COM port with ST-LINK/V2-B only
- Mass storage with ST-LINK/2-B only
- Board power supply: through USB bus or from an external 3 V or 5 V supply voltage
- External application power supply: 3 V and 5 V
- L3GD20, ST MEMS motion sensor, 3-axis digital output gyroscope
- LSM303DLHC, ST MEMS system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor
- Ten LEDs:
- LD1 (red) for 3.3 V power on
- LD2 (red/green) for USB communication
- Eight user LEDs: LD3/10 (red), LD4/9 (blue), LD5/8 (orange) and LD6/7 (green)
- Two push-buttons (user and reset)
- USB USER with Mini-B connector
- Extension header for all LQFP100 I/Os for quick connection to prototype board and easy probing
- Comprehensive free software including a variety of examples, part of STM32CubeF3 package or STSW-STM32118 for legacy Standard Library usage
- STM32F3 discovery STM32F303VCT6
